特點及應用| Characteristics and Application

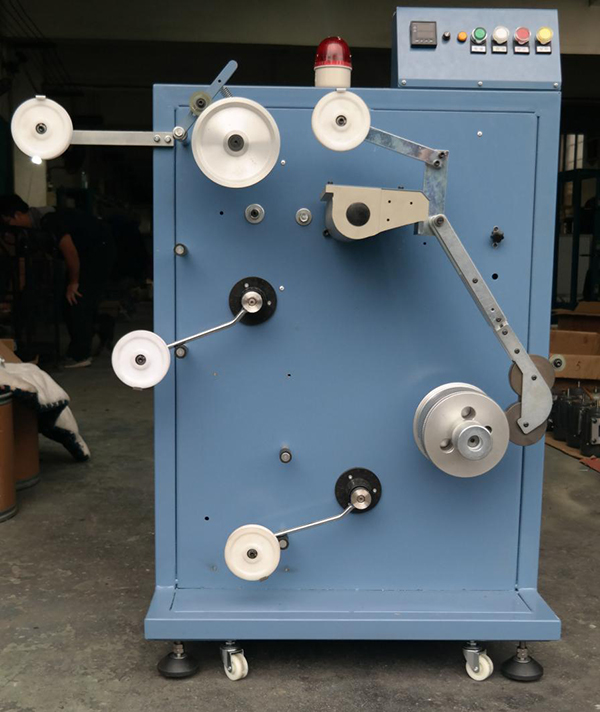

　　卷繞機主要用作于各種材質扁帶的平行卷繞，也可在輕工、紡織、電子等生產領域使用。本機器具有卷筒成形好，張力恒定，能耗低等特點。

　　技術參數：

　　卷繞機繞絲線速度：0-100m/min(可定制)

　　卷筒最大直徑：76-700mm(可定制)

　　電源：AC220V  50HZ/60HZ

　　電機功率：15W/250V    200W/220V

　　電機轉速：1400 r/min/ 2800r/min(可調)

　　連接電纜3×2.5   R.S.J.MP

　　卷繞筒管尺寸：內徑×外徑×長度(mm)152×165×105(無論內徑和長度均可以在有限范圍內為您定做）

　　往復行程：92mm(標準)

　　The winding machine is mainly used for the parallel winding of various materials, and can also be used in light industry, textile, electronics and other production areas.The machine has the characteristics of good shape, constant tension and low energy consumption.

　　Technical parameters:

　　Winding speed：0-100m/min

　　The maximum diameter of the drum：76-700mm

　　Power：AC220V  50HZ/60HZ

　　Motor power：15W/250V     200W/220V

　　Motor speed： 1400r/min     2800r/min

　　Connect the cable：3X2.5  R.S.J.MP

　　Winding bobbin size：Inside diameter x Outside diameter x length（mm）152X165X105（The inner diameter and length have different requirements can be customized in the range）

　　Reciprocating stroke：92mm
